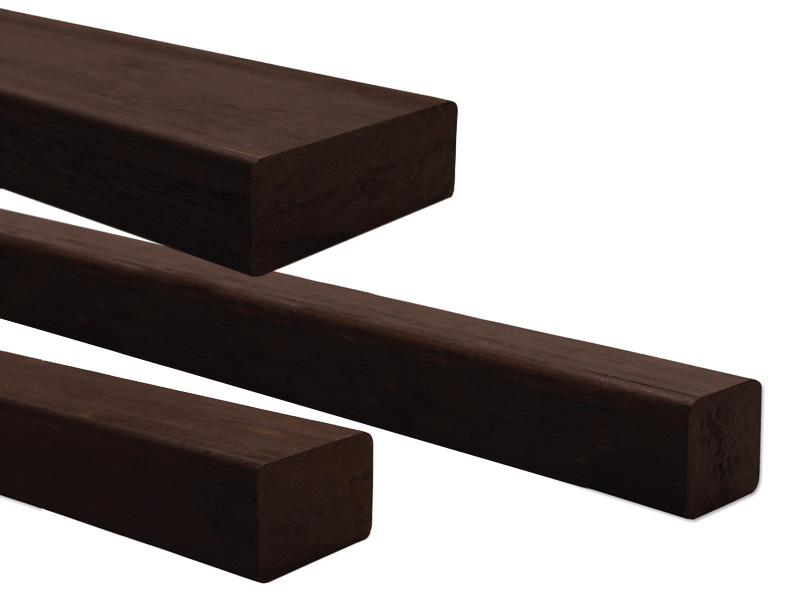

MOSO® Bambus X-treme® udendørs profiler

Denne holdbarhed og stabilitet og de præ-profilerede afrundede kanter gør MOSO® Bambus X-treme® udendørs profiler ideelle til brug til facader.



En unik varmebehandlingsproces ved 200°C og kompression af bambusstrimlerne for at øge densiteten gør MOSO® Bambus X-treme®-materialet ekstremt holdbart og stabilt.

Den omfattende fremstillingsproces giver MOSO® Bambus X-treme® udendørsbjælker den højest mulige holdbarhedsklasse i de gældende EU-normer. Som ved tropisk hårdttræ ændres farven på materialet under påvirkning af vind, regn, frost og solskin (UV-lys).

Dette resulterer i en naturlig gråtone. Regelmæssig rengøring og vedligeholdelse med en finish/sealer beskytter materialet mod denne vejrrelaterede misfarvning.

MOSO® Bambus X-treme® udendørs profiler
Brandhæmmende facadeprofiler · Bambus profiler
MOSO® Bambus X-treme® outdoor beams
Brandhæmmende facadeprofiler · MOSO® Bambus X-treme® udendørs profiler
Bambus profiler

Varenummer Efterbehandling Dimensioner (mm)
BO-DTHT2170-2-01 Sikkens Cetol 2000x115x40
BO-DTHT2171-2-01 Sikkens Cetol 2000x80x40
BO-DTHT2172-2-01 Sikkens Cetol 2000x60x40
BO-DTHT2173-2-01 Sikkens Cetol 2000x40x40
BO-DTHT2174-2-01 Sikkens Cetol 2000x55x40
BO-DTHT2175-2-01 Sikkens Cetol 2000x90x40


Other dimensions, bevel and finish can be produced custom made.

Bestil en prøvepakke eller book en produktfremvisning af MOSO bambus

Vi kigger gerne forbi og viser prøver, send os gerne en uforpligtende forespørgsel på salg@a2supply.dk

Du er også altid velkommen til, at kontakte os på tlf. +45 98 55 10 75 og høre nærmere om MOSO bamboo
Inspirationsfotos med bambus brandsikre facadeprofiler
Brandhæmmende facadeprofiler · Orientarium in the Municipal Zoological Garden in Łódź
Orientarium in the Municipal Zoological Garden in Łódź
Gradhermetic residential façade in Madrid
Brandhæmmende facadeprofiler · Gradhermetic residential façade in Madrid
Gradhermetic residential façade in Madrid

Orientarium in the Municipal Zoological Garden in Łódź:
Design: Dorota Szlachcic, ArC2 Fabryka Projektowa-studio  //  Photography: ZOO Łódź: Installation

MOSO® by Gradhermetic residential façade in Madrid
Partner: Gradhermetic Design //  Estudio Hans Abaton // Photography Victoria Muñoz / MOSO

Installation

  • To allow natural shrink- and swell behaviour, install beams with a minimum of 4 mm distance.
  • MOSO® Bamboo X-treme® Beams must be mechanically fixed, using screws/bolts. The fixing method depends on the application.
  • Use stainless steel A2 screws/bolts.
  • For all our standard size beams, except 40x40 mm, we advise a minimum of 2 screws per fixing point. 40x40 mm beams can be fixed with 1 screw per fixing point.
  • Horizontal installation:
  • The number of fixing points is depends on the application and applicable load.
  • In general, a 2 meter beam should at least have 3 fixing points (2 on the sides and 1 connection in the middle).
  • Vertical installation:
  • End of the beam should be angled (min. 15°) to improve water drainage.
  • Beams longer than 1 meter have to be fixed in at least 3 points.
  • To avoid cracks caused by excessive water uptake, end of the beam must be treated with a sealer.
  • Store in a cool and dry place away from direct sunlight, and protected from weather influences, dirt and dust.
  • Full version available at www.moso-bamboo.com/x-treme/beams

Technical characteristics and certifications

  • Density: +/- 1150 kg/m3
  • Dimensional stability: length: + 0,1 %; width + 0,9% (24 hours in water 20°C)
  • Resistance to Indentation - Mean value Brinell Hardness: ±9.5 kg/mm2 (EN 1534)
  • Reaction to fire: Class B-s1-d0 1) (EN 13501-1), applicable as a material test
  • Flame spread index: Class A (ASTM E84)
  • Thermal emittance: 0.81 (ASTM C1371) 2)
  • Solar Reflectance (SR): 0.32 (ASTM C1549) 2)
  • Solar Reflectance Index (SRI): Low 27, Medium 30, High 33 (ASTM E1980) 2)
  • Modulus of Elasticity: 13565 N/mm2 (mean value - EN 408)
  • Bending strength: 54.4 N/mm2 (characteristic value - EN 408)
  • Biological durability: Class 1 (EN 350 / CEN/TS 15083-2),simulated graveyard test Class 1 (EN 350 / CEN/TS 15083-1)
  • Effectiveness against Blue Stain: Class 0 (EN 152)
  • Use Class: Class 4 (EN 335)
  • CO2 neutral: LCA report TU Delft (ISO 14040/44) (www.moso-bamboo.com/lca)
  • Environmental Product Declaration - EPD (EN 15804) (www.moso-bamboo.com/epd)
  • Contribution LEED BD+C - v4: MR 1, MR 2, MR 3 (FSC®), SS 7 v2009: MR 6, MR 7 (FSC®)
  • Contribution BREEAM: MAT 1, MAT 3 (FSC®), MAT 5 (HD)
  • Guarantee: 10 years

1) Tested on panel material with 18 mm thickness, without gaps between boards, with ventilation space behind boards.
2) Tested on 3 years weathered MOSO® Bamboo X-treme®
